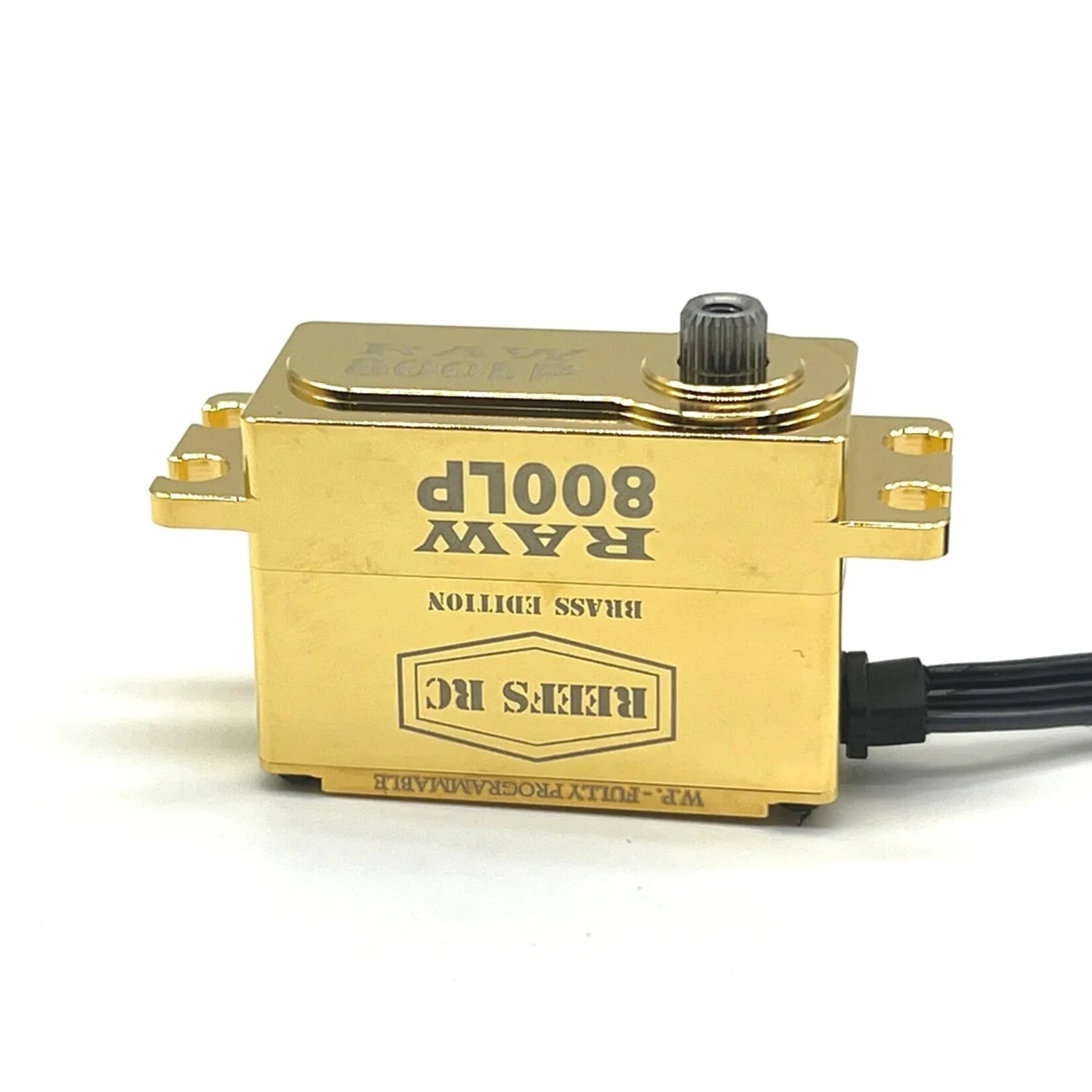

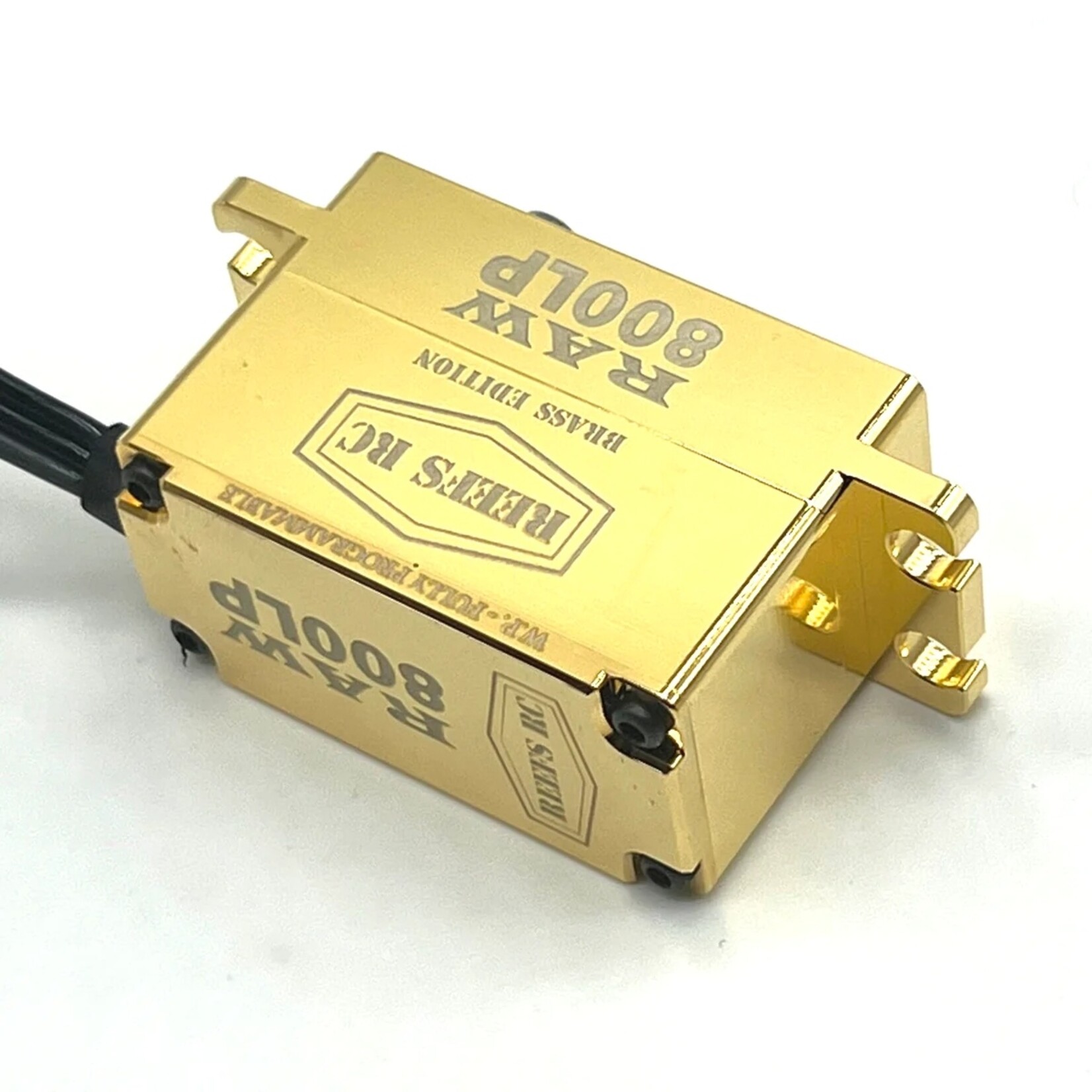

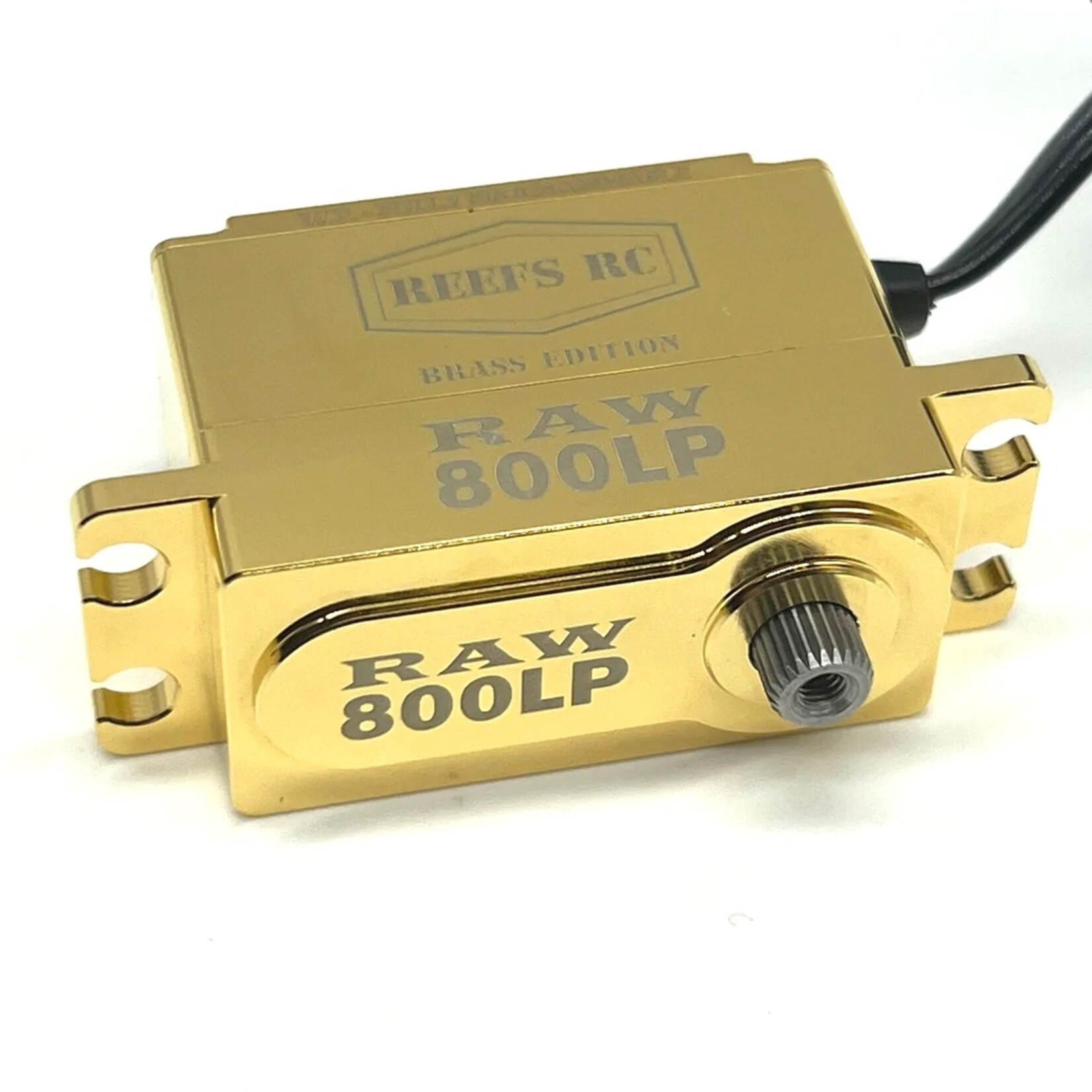

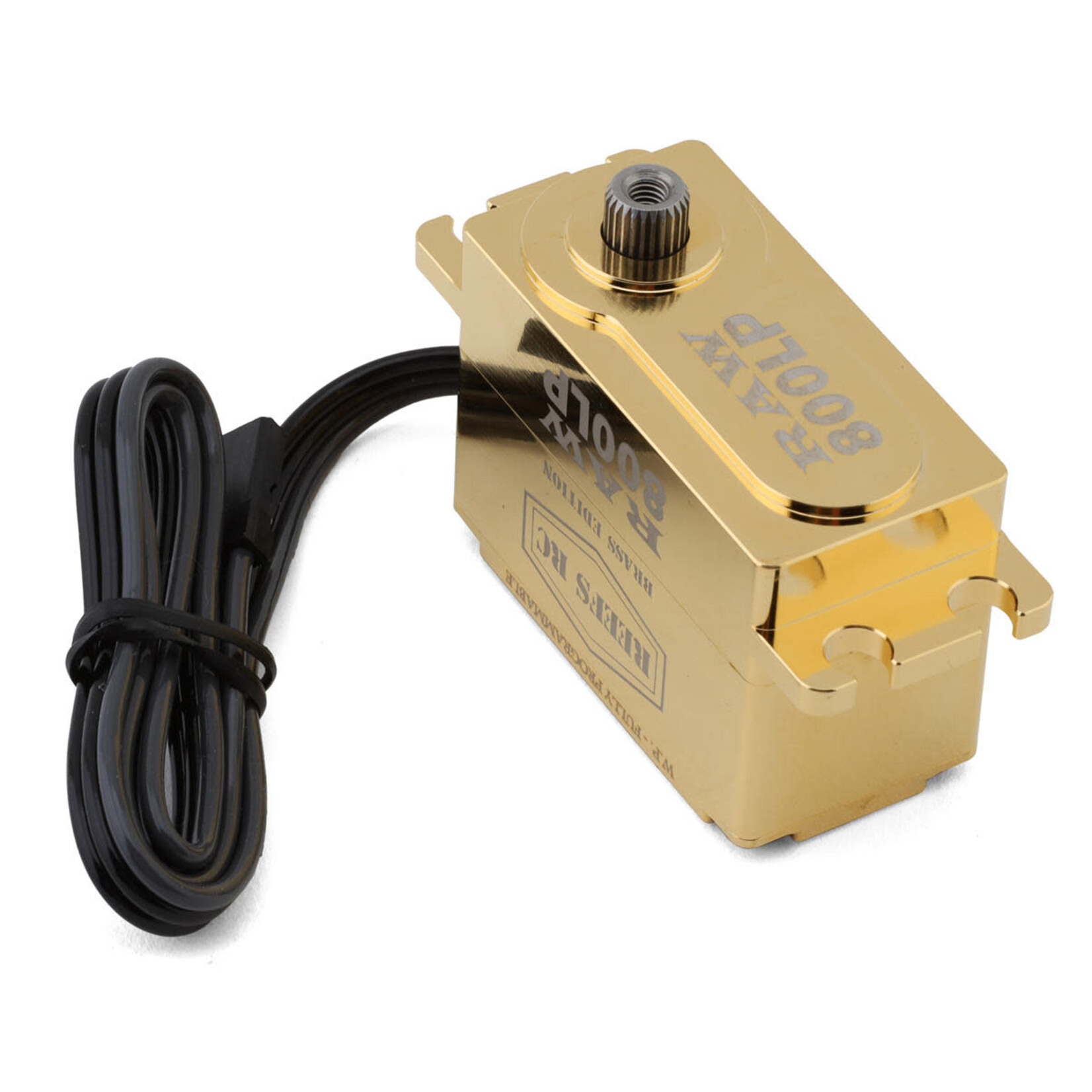

RAW800LP Brass Edition, Fully Programmable, Brushless Low Profile Servo

Note: BEC not required, but recommended for best performance.

Specifications:

• Motor: 4 POLE - Brushless
• Submarine Waterproof: 7 Point Seals
• Positioning: Magnetic Angle Sensor
• Voltage: 4.8V - 8.4V
• Programmable: REEFS LINK required for Programming (Optional)
• Gears: Steel Gears
• Spline: 25T / Dead Band Width: 2 µ
• Case: CNC Aluminum Casing
• Bearing Type: 2 Ball Bearings
• Weight: 2.3oz / 66gm
• Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
• Torque:
  • 6.0V: 635oz
  • 7.4V: 715oz
  • 8.4V: 800oz
• Speed:
  • 6.0V: .12sec
  • 7.4V: .10sec
  • 8.4V: .09sec
• Unload Current:
  • 6.0V: 500mA
  • 7.4V: 540mA
  • 8.4V: 580mA
• Load Current:
  • 6.0V: 6000mA
  • 7.4V: 6800mA
  • 8.4V: 7500mA
